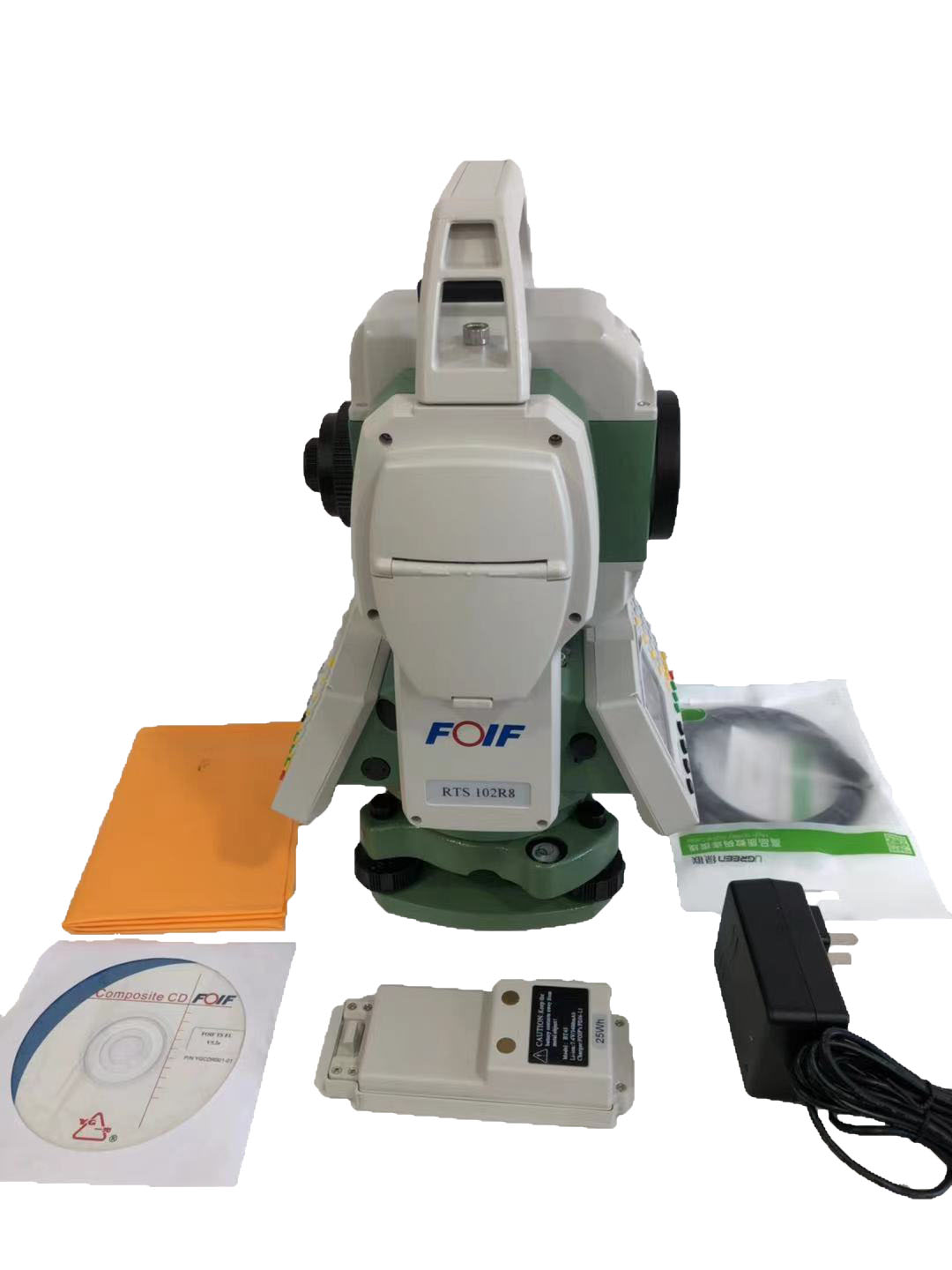

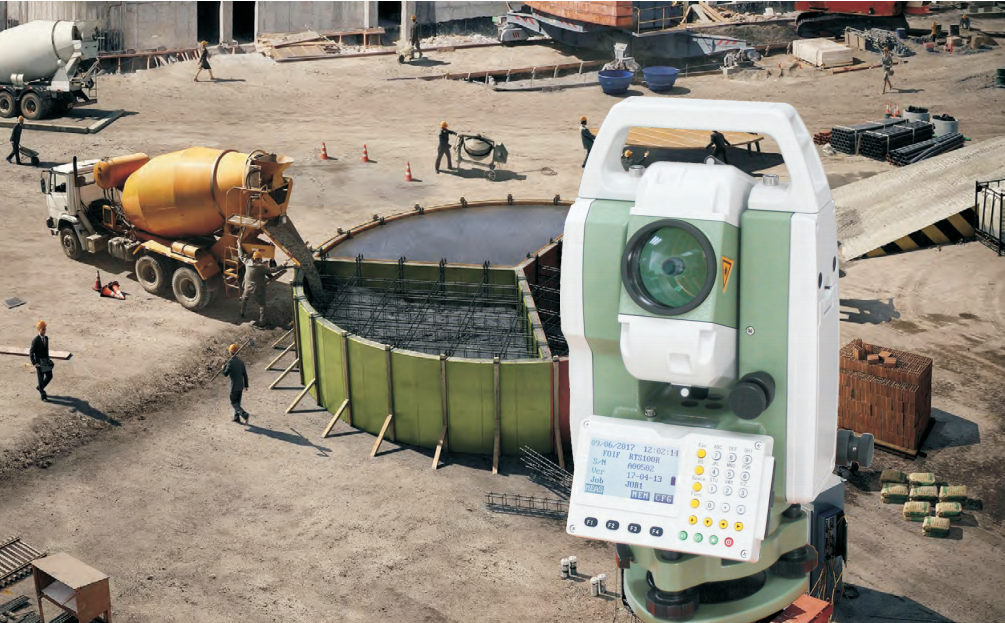

total station FOIF RTS102R8
Short Description:
Features ● Alphanumeric keyboard ● Reflectorless measuring diatance:800m ● Bluetooth cable-free connection(Factory Optional) ● 120000 points and 40 jobs can be saved ● Can be operated with a data collector, or other third party software is available Product Specifications Model RTS102R8 Technical data Telescope Image Erect Objective aperture φ45mm Magnification 30X Field of view 1°30’ Shortest focus distance 1.0m Ang...
Features
● Alphanumeric keyboard
● Reflectorless measuring diatance:800m
● Bluetooth cable-free connection(Factory Optional)
● 120000 points and 40 jobs can be saved
● Can be operated with a data collector, or other third party software is available
Product Specifications
|
Model
|
RTS102R8
|
|
Technical data
|
|
|
Telescope
|
|
|
|
Erect
|
|
Objective aperture
|
φ45mm
|
|
Magnification
|
30X
|
|
Field of view
|
1°30’
|
|
Shortest focus distance
|
1.0m
|
|
Angle measurement
|
|
|
Reading system
|
Absolute encoder
|
|
Angle unit
|
360°/400gon/6400mil, selectable
|
|
Display resolution
|
1”/5”/10”(or 0.2mgon /1 mgon /2mgon)
|
|
Accuracy
|
2″
|
|
Distance measurement
|
|
|
Laser class(IEC 60825-1)
|
|
|
Reflectorless
|
Class 3A(3R)
|
|
Reflective sheet/RP60
|
Class 3A(3R)
|
|
Prism
|
Class 1
|
|
Measurement range
|
|
|
Reflectorless
|
2.0 to 800m
|
|
Single prism
|
2.0 to 5000m
|
|
Accuracy
|
|
|
Prism
|
2mm+2ppm
|
|
Reflective sheet/ RP60
|
3mm+2ppm
|
|
Reflectorless
|
3mm+2ppm
|
|
Measuring time(prism)
|
|
|
Tracking
|
0.4 sec
|
|
Fast
|
0.6 sec
|
|
Fine
|
1.0 sec
|
|
Display resolution(m/inch selectable)
|
0.2mm
|
|
Temperature input range
|
－40℃ to +60℃ (1℃ steps)
|
|
Pressure input range
|
500hPa to 1500hPa (1hPa steps)
|
|
Prism constant correction
|
-99.9mm to +99.9mm
|
|
Compensator
|
Dual-axis
|
|
Range
|
±3′
|
|
Setting accuracy
|
1″
|
|
Level vial sensitivity
|
|
|
Plate level vial
|
30″/2mm
|
|
Circular level vial
|
8″/2mm
|
|
Laser plummet(Standard)
|
|
|
Accuracy
|
±1mm/1.5m
|
|
Laser class
|
Class 2/IEC60825-1
|
|
Laser spot brightness
|
Adjustable
|
|
Laser wave length
|
635nm
|
|
Optical plummet (Factory Optional)
|
|
|
Accuracy
|
±0.8mm/1.5m
|
|
|
Erect
|
|
Magnification/ Field of view
|
3x/4°
|
|
Focus range
|
0.5m to∞
|
|
Power
|
|
|
Battery
|
3400mAh Li-ion Rechargeable
|
|
Output voltage
|
7.4VDC
|
|
Continuous operation time (angle measurement)
|
Approx. 24 hours (At +20℃)
|
|
Charger
|
FDJ6-LI
|
|
Chargering time (at+20)
|
Approx.4hours
|
|
Application programs
|
|
|
Data collection/Stake out/Resection/REM/MLM/Road
|
|
|
AREA/Point to line/Z coordinate/OFF set/Arc staking out
|
|
|
Others
|
|
|
Display
|
LCD, 6 lines *20characters (96*160dots)
|
|
CPU
|
32Bit
|
|
Memory
|
120000 points, support SD card (max. 16G)
|
|
Keyboard
|
Alphanumerical key board, both sides
|
|
Weight(including batteries)
|
5.1 kg
|
|
Operating temperature
|
－20℃to+50℃
|
|
Storage temperature
|
－40℃to+70℃
|
|
Interface
|
USB/RS-232C/Bluetooth(Factory Optional)
|
|
Water and dust protection
|
IP66 (IEC60529)
|
|
Data collector
|
F58 ,fully rugged PDA (Optional)
|
