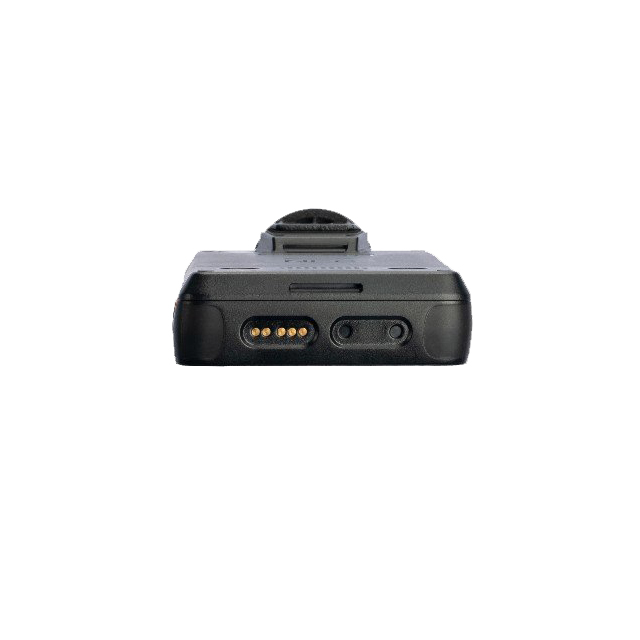

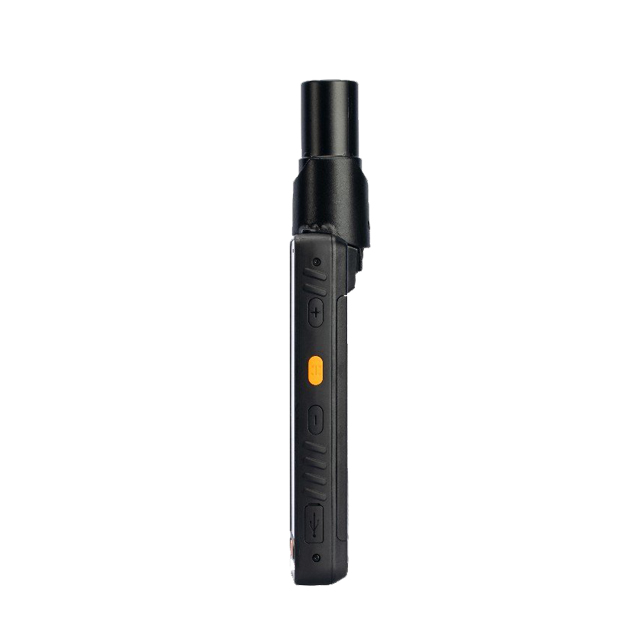

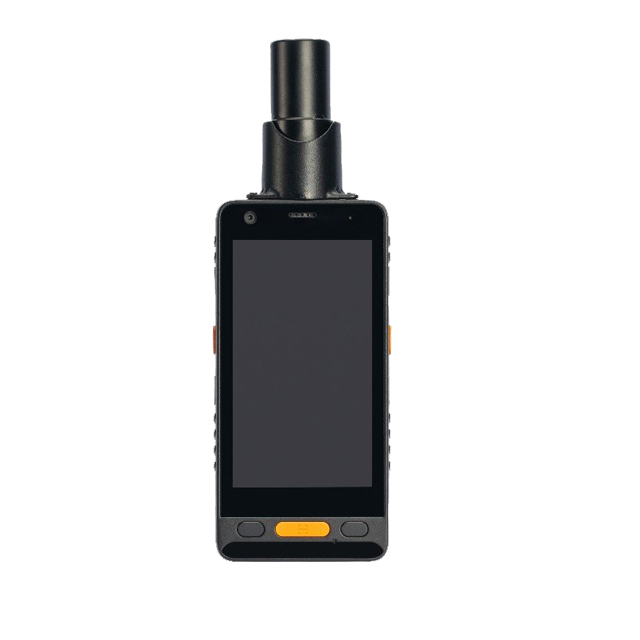

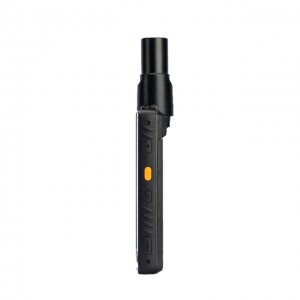

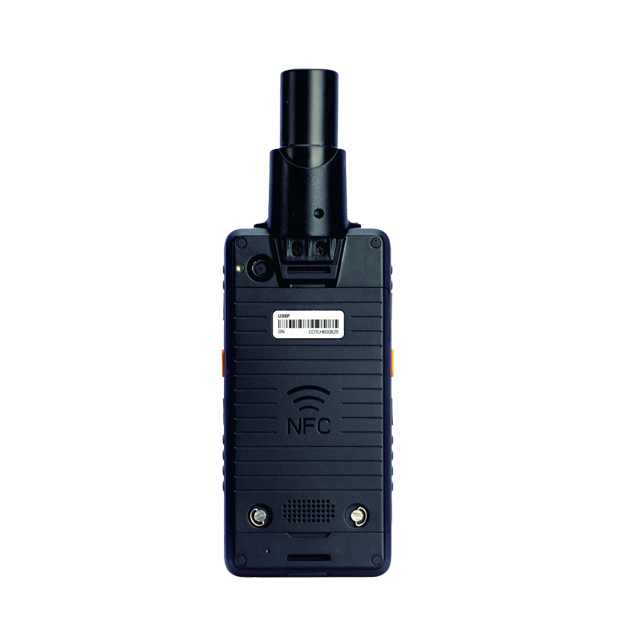

Android Handheld RTK Receiver U38P
Short Description:
Features The U38P is a compact, solid and cost-effective high accuracy data collector. It is equipped with build-in full frequence hellx antenna and 4.5-inch TFT high-resolution display screen, powered by ublox F9P GNSS module. With Android 7.0 operating system. It supports LTE 4G all network communication, Bluetooth, Wi-Fi and other communication links. Applicable to Google player, HyperGIS can be pre-installed as option. The U38P is designed for power system, Agriculture, Geology, Forestry,...
Features
The U38P is a compact, solid and cost-effective high accuracy data collector. It is equipped with build-in full frequence hellx antenna and 4.5-inch TFT high-resolution display screen, powered by ublox F9P GNSS module. With Android 7.0 operating system. It supports LTE 4G all network communication, Bluetooth, Wi-Fi and other communication links. Applicable to Google player, HyperGIS can be pre-installed as option.
The U38P is designed for power system, Agriculture, Geology, Forestry, Field Service, GIS/Survey and other extreme environment.
Specification
| Model | U38P |
| GNSS module | ublox ZED F9P |
| Standalone | 1.5m |
| RTK | 5cm |
| System | |
| OS | Android 7.0 |
| CPU | MT6735 ARM Cortex-A53 1.3GHz |
| RAM | 2GB LP DDR3 |
| Storage | 16GB eMMC |
| LCD Display | |
| Display-Front | 4.5′ TFT LCD |
| Resolution 960(H)*540(W) | 960(H)*540(W) |
| Brightness (cd/mC) | 400 cd/mC |
| Touch Screen | 5 points capacitive touch (PCT) |
| Peripherals and Devices | |
| Camera | Front: 2MFF |
| Rear: 13M(AF), Flash support | |
| Sensor | Magnetometer(M-Sensor/E-Comprass) |
| Accelerometer(G-sensor) | |
| Gyroscope | |
| Ambient light sensor | |
| Audio & Vibrator | Speaker(1.5W), Microphone( De-noising) |
| 3.5mm stereo headphone/ microphone combo jack | |
| Vibrator | |
| Wireless | |
| WLAN | IEEE802.11 a/b/g/n |
| Bluetooth | Bluetooth 4.1 (BLE, HS compliant) |
| WWAN | 2G GSM/GPRS/EDGE(Band 850/900/1800/1900; 30dBm) |
| 3G WCDMA( Band1,2,5,8) | |
| 3G CDMA2000(BC0) | |
| 4G FDD+TDD(Band 1,3,5,6,8,20,38,39,40,41) | |
| 4G DRX(Band 1,3,5,7,8,20,38,39,40,41) | |
| GPS | A-GPS/GPS/Beidou |
| ublox ZED-F9P | |
| NFC | MT6605EN |
| I/O Interface | |
| USB | 1* micro USB 2.0 port High Speed/ OTG Compatible(need plug) |
| SD Slot | 1* microSD card slot( support up to 32G) |
| SIM card | 1* micro-SIM(3FF) socket supporting 2G/3G/LTE |
| 1* micro-SIM(3FF) socket supporting 2G/only | |
| Power Supply | |
| Battery Capacity | 4000mAh |
| Adaptor input | AC 100-240v 50-60Hz |
| Adaptor output | 5V/2A(10W) |
| Quick Charge | Fully charged in 2hrs |
| Mechanical & Environmental | |
| Sealing level rate | rate IP67 |
| Drop Specification | 1.2m |
| Operation Temperature | -10℃~50℃ |
| Storage Temperature | -20℃~+60℃ |
| Operating Humidity | 5%~95% RH |
| Dimension | 147*71*22.3(mm) |
| Gross Weight | 285g with battery |
