GNSS Receiver UN682T
Short Description:
Positioning and Heading GNSS Receiver UN682T UN682T GNSS high-precision positioning and directional receiver, built-in UN682E GNSS high-precision positioning and orientation board, the shell is made of high-quality aluminum alloy, the whole machine is beautiful, durable and easy to install. Features - Support full-system and full-frequency RTK solution; - Support modern signal system like BDS-3, Galileo; - Support three vector RTK solution, optimized performance under dynamic conditions; - S...
Positioning and Heading GNSS Receiver UN682T
UN682T GNSS high-precision positioning and directional receiver, built-in UN682E GNSS high-precision positioning and orientation board, the shell is made of high-quality aluminum alloy, the whole machine is beautiful, durable and easy to install.
Features
- Support full-system and full-frequency RTK solution;
- Support modern signal system like BDS-3, Galileo;
- Support three vector RTK solution, optimized performance under dynamic conditions;
- Support raw data output and post-processing (optional);
- Can quickly switch to base or rover mode by commands, easy to use;
- Support up to 50Hz RTK solution frequency(optional), and 10Hz RTK+heading solution frequency, latency less than 20ms (typical value).
Specifications
GNSS Specifications | |
Signal Tracking | GPS L1C/A、L2C、L2P; Beidou B1I、B2I, B1c、B2a; Glonass G1/G2 ; Galileo E1/E5b |
Channel | 256 channels |
Positioning and heading model | GPS, Beidou, Glonass, Combination |
Standalone Position Accuracy | 1.5m RMS |
RTK accuracy | Horizontal: 10 mm + 1 ppm RMS; Vertical: 15 mm + 1 ppm RMS |
DGPS accuracy | Horizontal: 0.5m + 1 ppm RMS; Vertical: 1m + 1 ppm RMS |
Timing accuracy | 20ns RMS |
Heading accuracy | 0.2 degree/m RMS |
Speed accuracy | 0.05m/s RMS |
First time to fix | Cold start ≤ 60s; Hot start ≤ 10s |
Losing lock reposition time | ≤ 2s |
Losing lock reorientation time | ≤ 3s |
Serial port Baud rate | Default 115200bps; maximum: 921600bps |
Calculate frequency | 1Hz – 50Hz |
Differential data format | Default RTCM3.2, support CMR, CMR+, RTCM2.1, RTCM3.0, RTCM3.1 |
Phisical and Electric | |
Size (L x W x H) | 135mm x 152mm x 73mm |
Weight | 1.3kg |
Material | Aluminium alloy |
Power Consumption | 4w |
Receiver Power | DC 7~36V |
Antenna interface | 2 GNSS Antenna interface (TNC-K) |

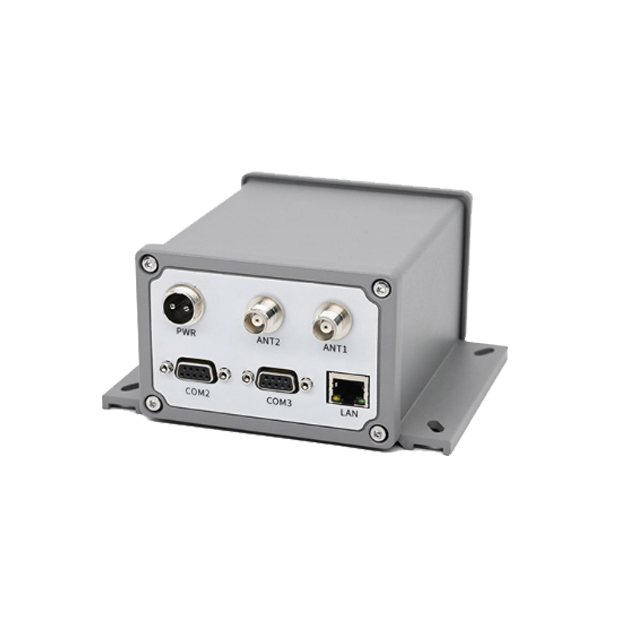

Communication interface | RS232 port x2, Power port x1, RJ45 port x1 |
Enviroment | |
Working Temperature | -40°C to +80°C |
Storage Temperature | -55°C to +95°C |
