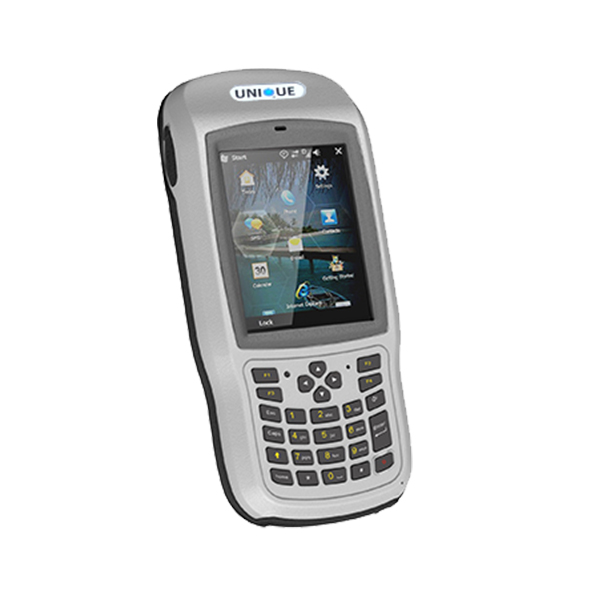

GIS Data Collector U17

Short Description:

The Thunder industrial handheld, integrated a dedicated GNSS receiving board, a combination of connectivity options and standard features, including DB9 series port,LRBT. NFC. Wi-Fi and 3G, provides entire solutions for high-accuracy GIS applications.The fully-mgged IP rate is designed for field use. The Thunder industrial handheld come ready for you with application possibilities in power companies, agriculture and geological industries, forestry, field service and GIS/surveying. Specificat...


Product Detail

Product Tags

The Thunder industrial handheld, integrated a dedicated GNSS receiving board, a combination of connectivity options and standard features, including DB9 series port,LRBT. NFC. Wi-Fi and 3G, provides entire solutions for high-accuracy GIS applications.The fully-mgged IP rate is designed for field use. The Thunder industrial handheld come ready for you with application possibilities in power companies, agriculture and geological industries, forestry, field service and GIS/surveying.

201706260602

Specifications

Model U17
Over View
Processor 806MHz
ROM 1GB
RAM 256MB
Operation system Windows mobile 6.x
Multi-language Yes
Keypad 27 numeric + programmable keys
Mic Yes
Speaker 3,7’’ sunlight readable with integrated touch screen
Display resolution 480 x 640
Camera 5megapixel
Dimension 200mm x 96mm x 32mm
Weight 515g with battery
GNSS Performance
GPS L1 Yes
GLONASS L1 Option
BEIDOU B1 Option
Channels 167 channels
NMEA-0183 Yes
External antenna Yes
Accuracy (Internal Accord accuracy)
Aulonomous 3m
SBAS 2.5m
DGPS 1m
Time to first fix
Hot start 1s
Warm start 29s
Cold start 29s
Re-acquisition 1s
Communications and data storage
Bluetooth 2.1 class II Yes
Long range Bluetooth Yes
NFC Optional
GSM/3G(WCDMA) 3G(WCDMA)
WIFI Yes
USB port Type B USB
Serial port BD9
Voice Yes
Storge extension TF card, up to 32GB
Power
DC input DC 5V, 1A
Detachable Li-ion battery 6500mA, 3.7V
Environment specifications
Operationg temperature -20℃ ~ +60℃
Storage temperature -30℃ ~ +70℃
Sand, dust & water IP67
Drop 1.2m protection
