GIS Data Collector U18
Short Description:
The Thunder industrial handheld,integrated a dedicated GNSS receiving board, a combination of connectivity options and standard features,including DB9 series port, LRBT,NFC,WIFI,and 3G, provides entire solutions for high-accuracy GIS applications. The fully-rugged IP rate is designed for field use.The Thunder industrial handheld come ready for you with application possibilities in power companies, agriculture and geological industries,forestry,field service and GIS/surveying. Specifications ...
The Thunder industrial handheld,integrated a dedicated GNSS receiving board, a combination of
connectivity options and standard features,including DB9 series port, LRBT,NFC,WIFI,and 3G, provides entire solutions for high-accuracy GIS applications. The fully-rugged IP rate is designed for field use.The Thunder industrial handheld come ready for you with application possibilities in power companies, agriculture and geological industries,forestry,field service and GIS/surveying.
Specifications
| Model U18 | |
| Overview | |
| Processor | 1GHZ |
| ROM | 1GB |
| RAM | 512M |
| Operation system | Windows Embedded Handheld |
| Camera | 5 mega pixel |
| Keypad | 27 numeric+programmable keys |
| Display | 3.7″ sunlight readable with integrated touch screen 480*640 |
| Dimension | 200mm×96mm×32mm |
| Weight | 515g with battery |
| GNSS Performance | |
| GNSS | GPS L1+ GLONASS L1 |
| Channels | 167 |
| Accuracy (Internal Accord accuracy) | |
| Autonomous | 3m |
| SBAS | 2.5m |
| Communications and Data Storage | |
| WIFI | Yes |
| USB port | Type B USB |
| Serial port | DB9 |
| Storage extension | TF card, up to 32GB |
| Long range Bluetooth | Optional (along with standard bluetooth) |
| Bluetooth2.1 class II | V2.1 |
| Datalink | 3G (WCDMA) |
| Power | |
| DC input | DC 5V, 1A |
| Detachable Li-ion battery | 6500mAh, 3.7V |
| Environment specifications | |
| Operationg temperature | -20°C~+60°C |
| Storage temperature | -30°C~+70°C |
| Sand,dust&water | IP65 |
| Drop | 1.2m protection |
| Accessory | |

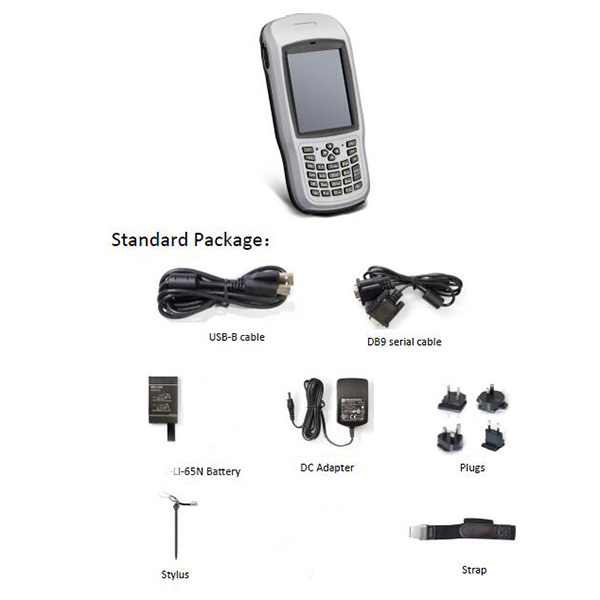

| Standard accessory | DC adapter, USB cable, Serial cable, Battery, Strap with Stylus, Screen protection film and User guid (Electronic Edition) |
| Optional accessory | Mounting bracket and Pole (Claw) Clamp, External GNSS antenna, External antenna cable |
| Supported Software | |
| Supported Software | SurvCE, Field Genius, SuperPad |
